Attachment heads
Solutions for every need
Our machines can be equipped with a wide range of state-of-the-art attachment heads, designed and manufactured in-house. They are suitable for milling, boring, and turning operations in 3-axis, 3+2-axis, and simultaneous 5-axis configurations.

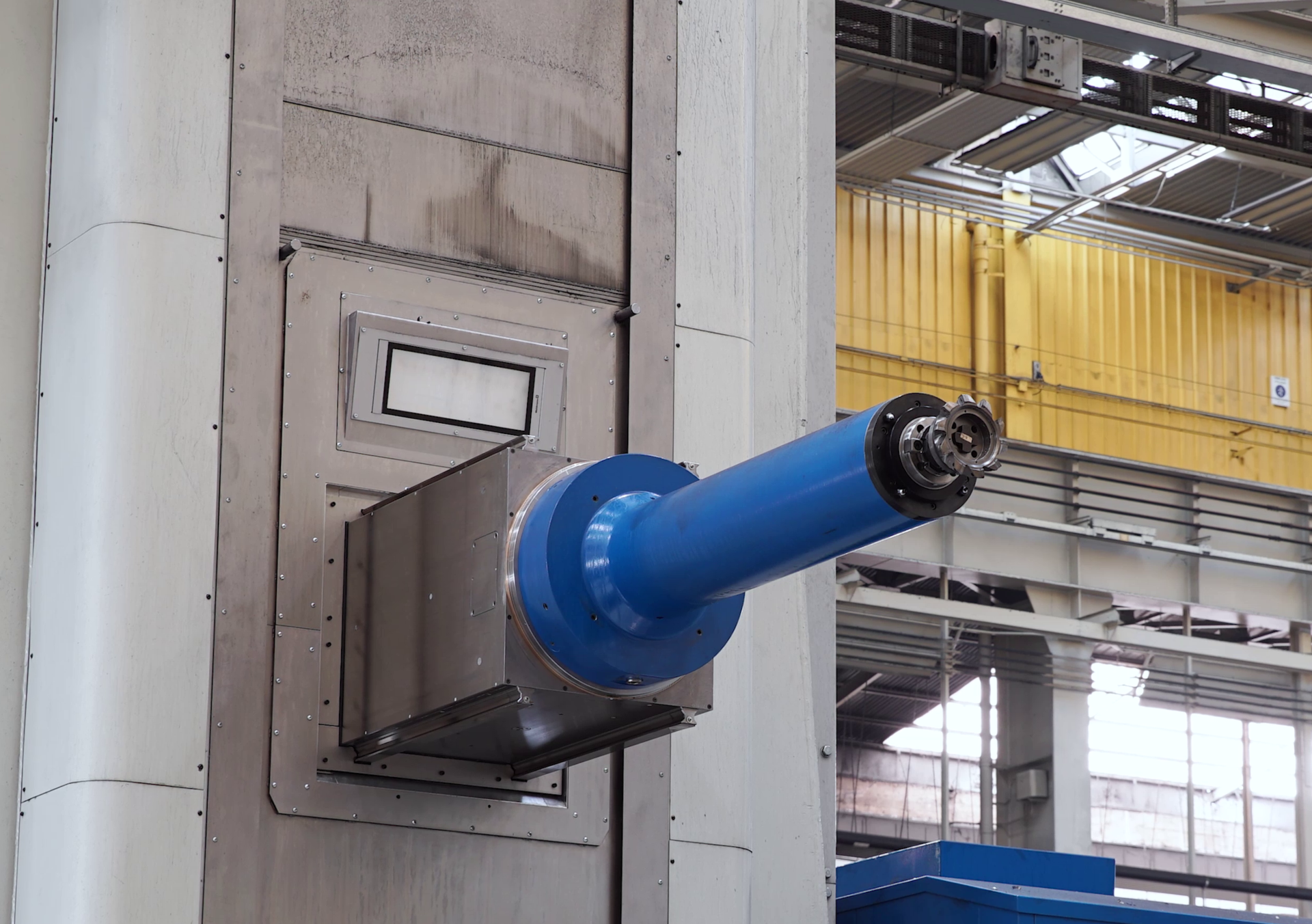

FA: Axial Extension
Engineered to access even the most hard-to-reach areas, it’s the perfect solution for internal machining and milling operations on deep cavities
- Wide range of available diameters and lengths, fully customizable
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

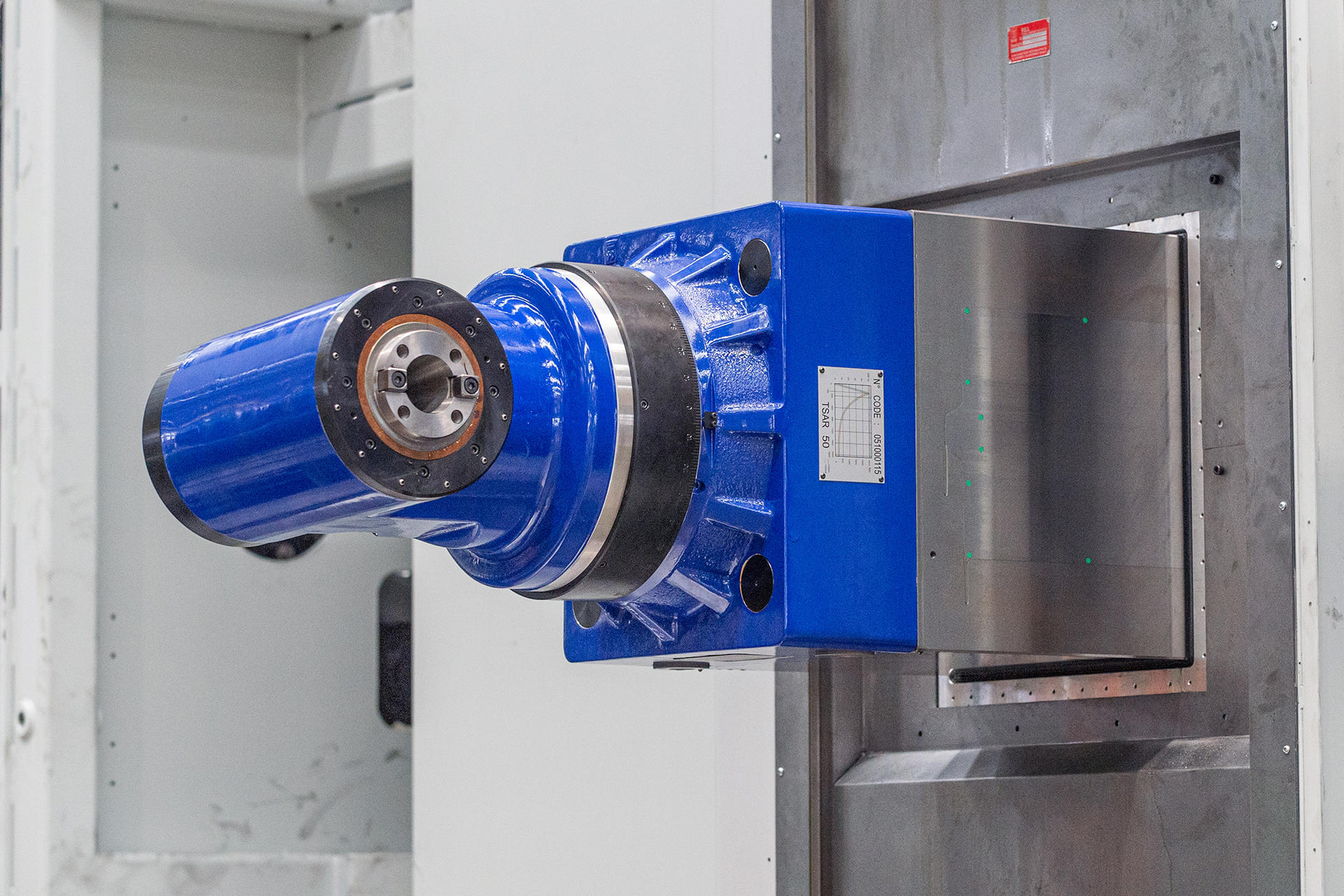

TS: right angle head
Right Angle heads are ideal for expanding the operational capability of both horizontal and vertical spindle machine tools by allowing the tool orientation to be changed. They are available in fixed or rotating versions, with compact and offset designs. Angle heads enable machining on side surfaces and in confined spaces without repositioning the workpiece, significantly improving productivity.
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

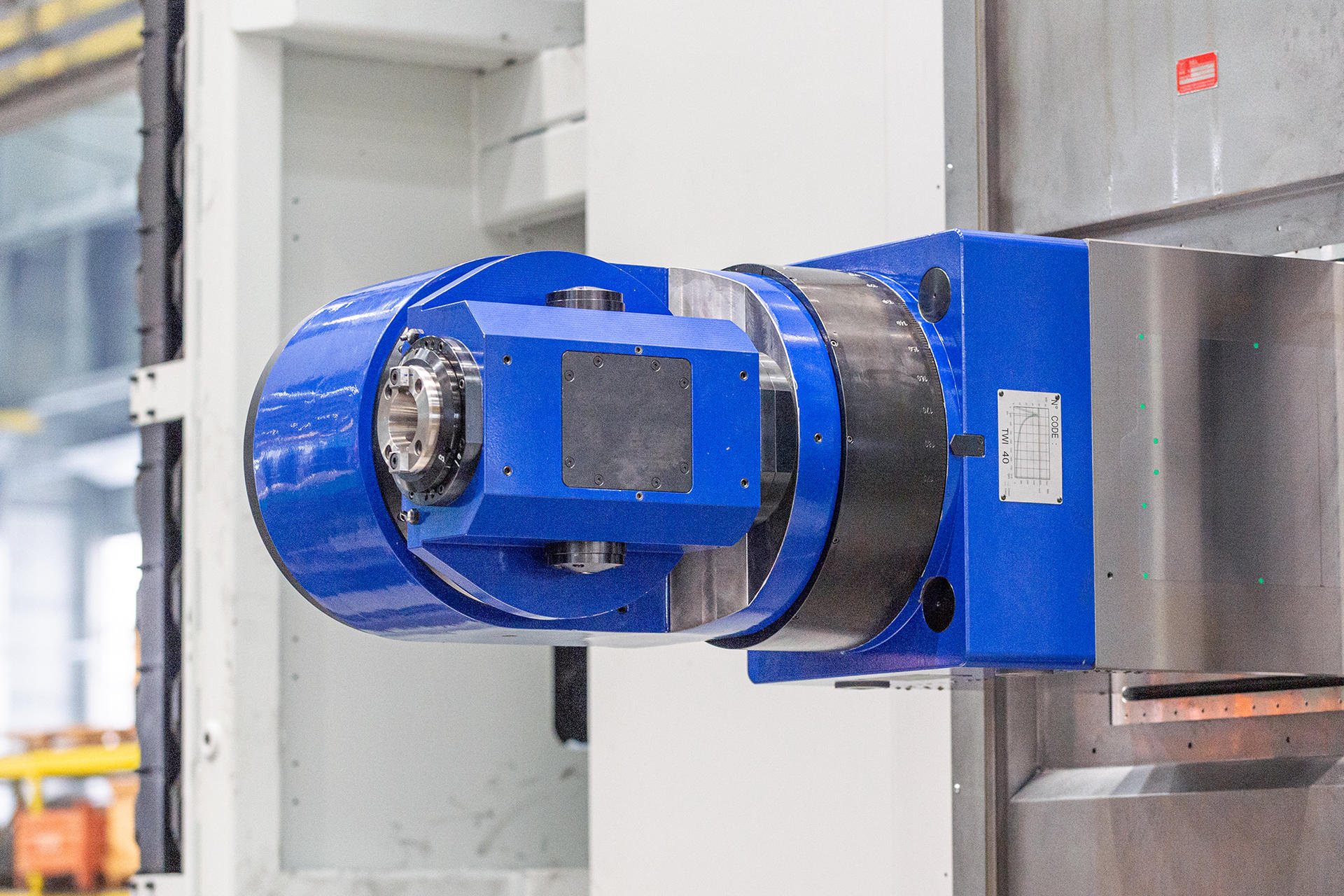

TUI - TWI: Universal Offset head
The universal attachment head with one or two indexed positioning axes is designed to deliver versatility and robustness in discrete angular machining operations, while maintaining full compatibility with both horizontal and vertical spindle machines:
- Indexed axes with 1° or 2.5° increments through Hirth-tooth coupling rings
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

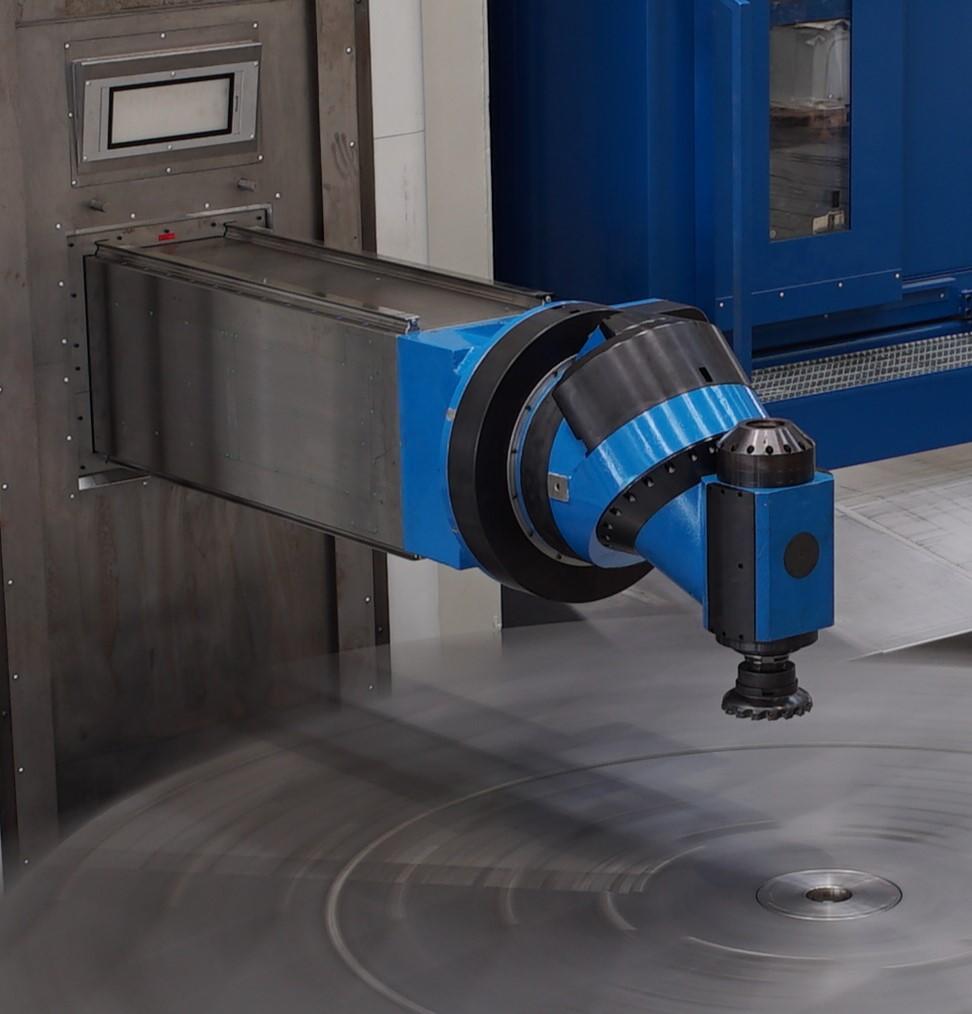

TUA - TUAR: 45° Universal head
The universal attachment head with one or two continuous, high-resolution positioning axes is composed of two semi-bodies with rotation axes oriented at 45° to each other. Ensuring versatility and precision in angular machining operations it is ideal for 3-axis or 3+2-axis machining, particularly on inclined surfaces with up to 360,000 different positions.”
- Master and slave motor pairs on the axes
- Direct measuring system on each axis
- Automatic tool clamping for fast and secure tool changes
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

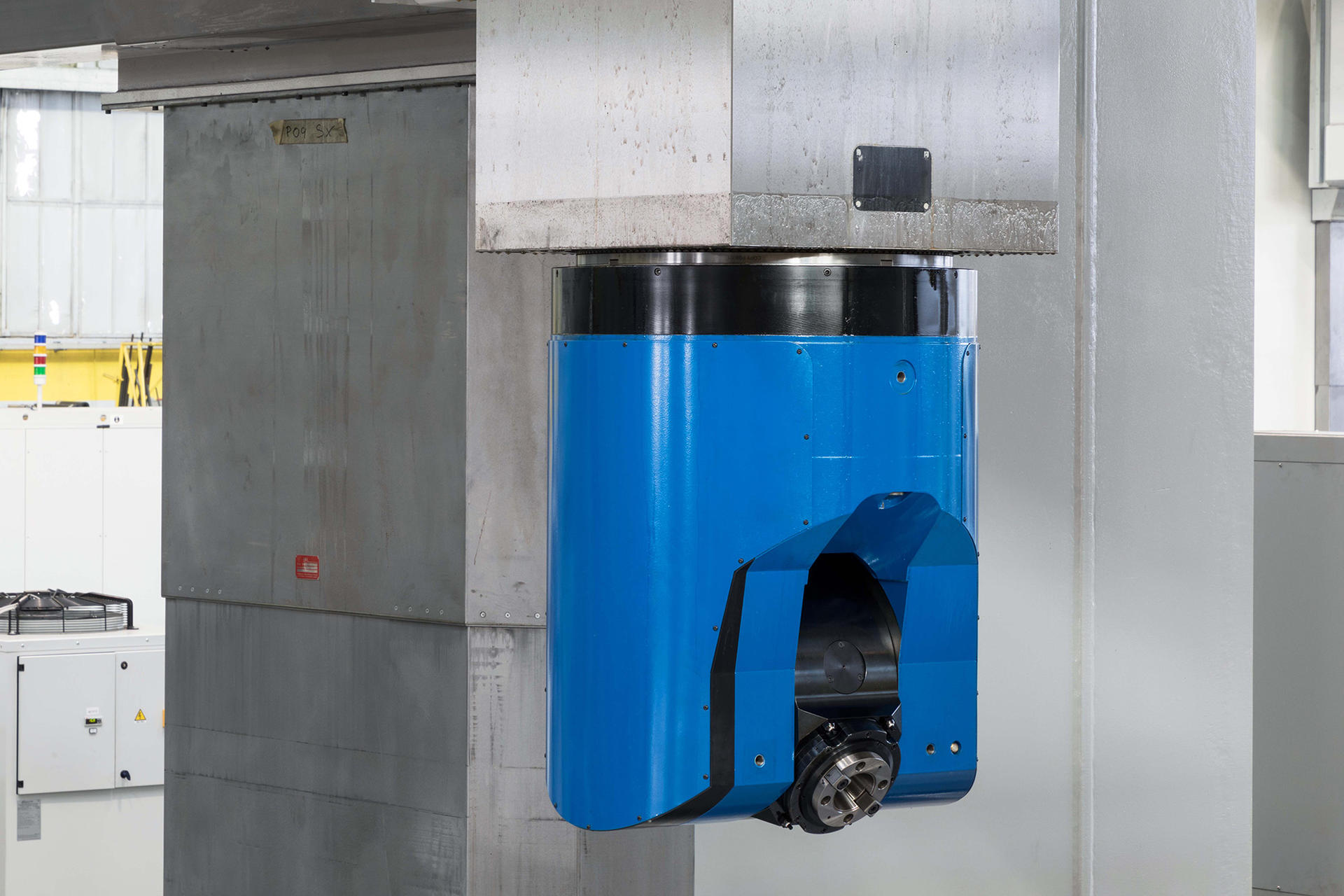

TOM - TUM: Fork Type Head for 5 axis machining
The fork type head with one or two axes provides a wide rotation range and greater machining freedom on complex surfaces. The tilting movement of the A-axis and the rotational movement of the C-axis are driven by CNC-controlled servomotors. It is ideal for 5-axis machining of components with complex geometries, undercuts, or three-dimensional profiles.
- Master and slave motor pairs on the axes
- Direct measuring system on each axis
- Automatic tool clamping
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

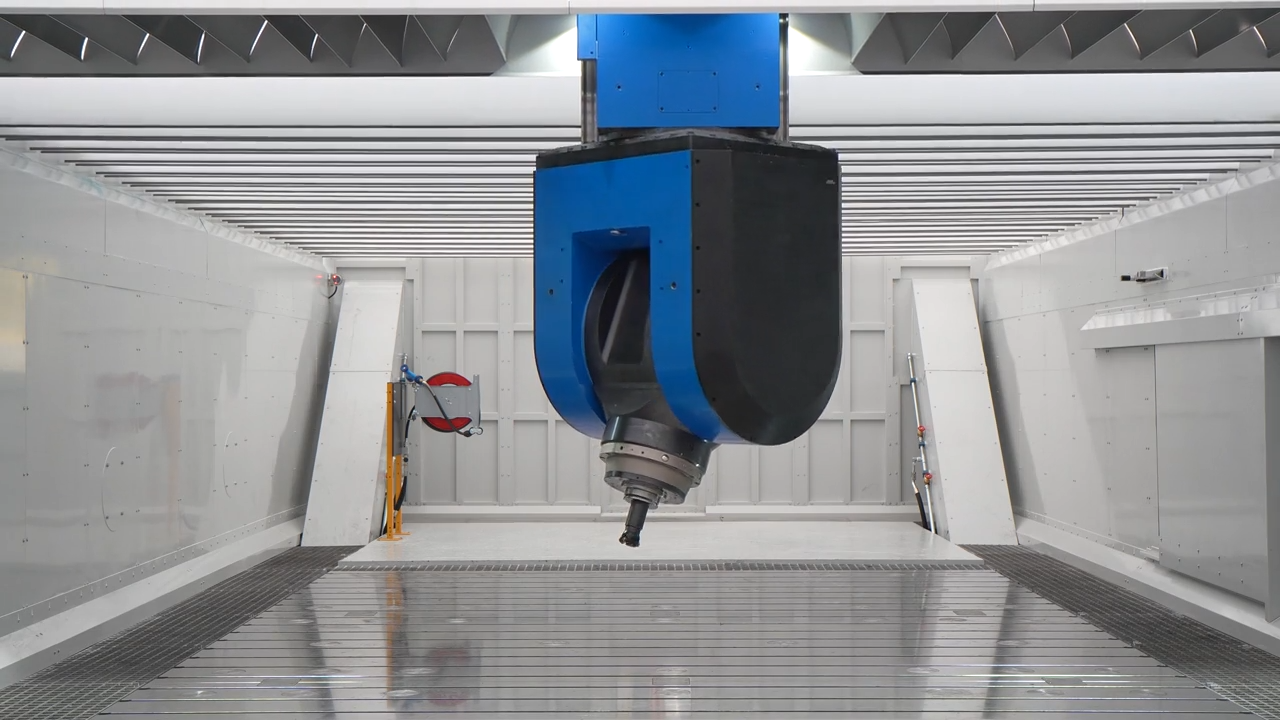

TOM-E: Fork type head with electrospindle
This fork-type attachment head version is excellent for high spindle-speed machining of materials such as aluminum, titanium, Inconel, and composites. The tilting spindle body can be equipped with a wide range of electrospindles, selected according to the material type and machining conditions. This attachment head can be used for 3-axis, 3+2-axis, and simultaneous 5-axis machining, where spatial orientation movements are combined with the three orthogonal linear axes.
- Wide range of electrospindles
- Automatic tool clamping
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

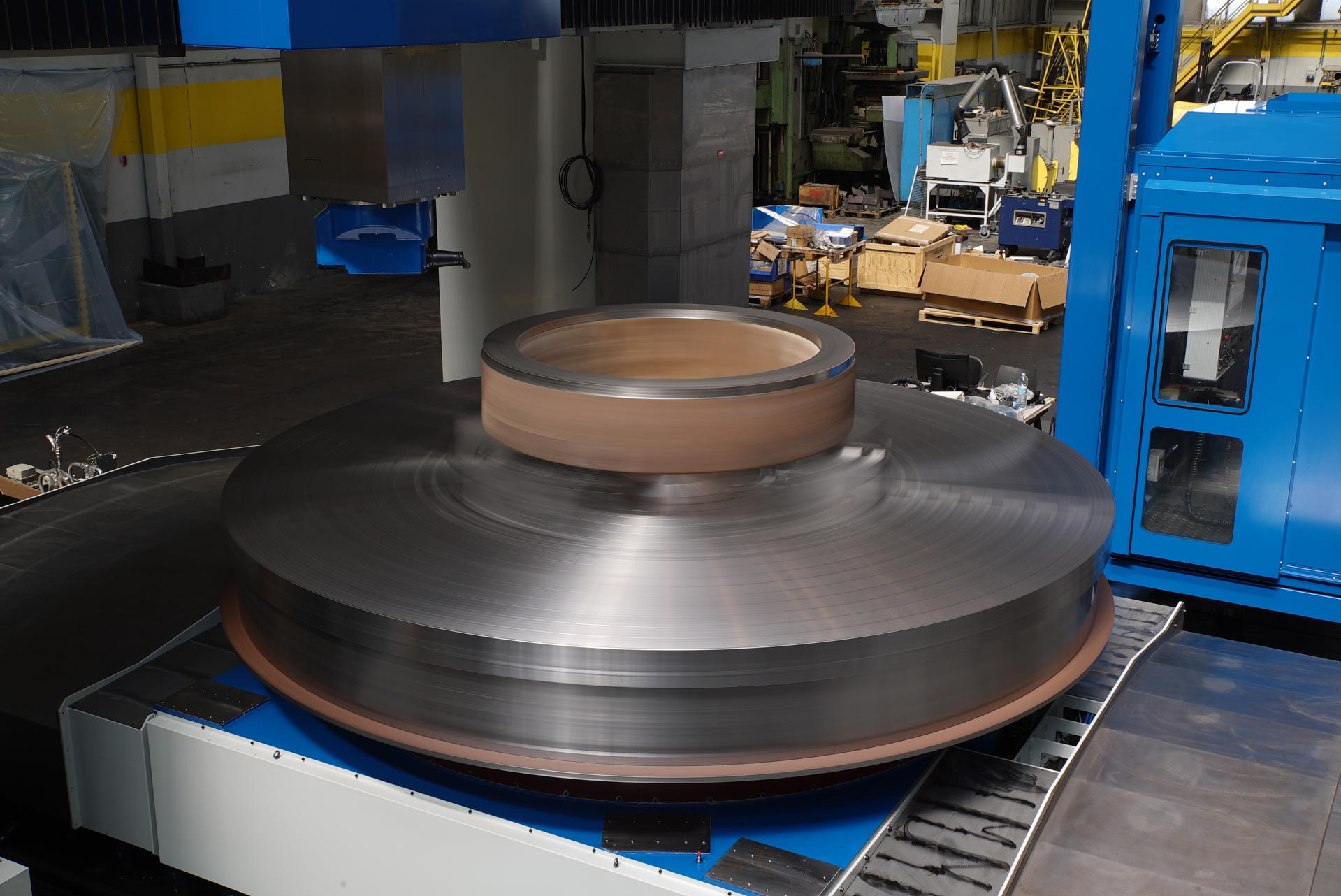

TH: Turning head
This robust and precise attachment head is designed for turning operations on multitasking machining centers. It can be customized in shape, size, and number of tool stations for both roughing and finishing operations on external and internal surfaces:
- Tool stations with vertical, horizontal, or combined orientation
- Bloccaggio automatico dell’utensile
- Automatic head change compatible with multi-tool systems
- Internal and external tool coolant supply
- Compatibility with ISO, HSK, and Capto tooling systems

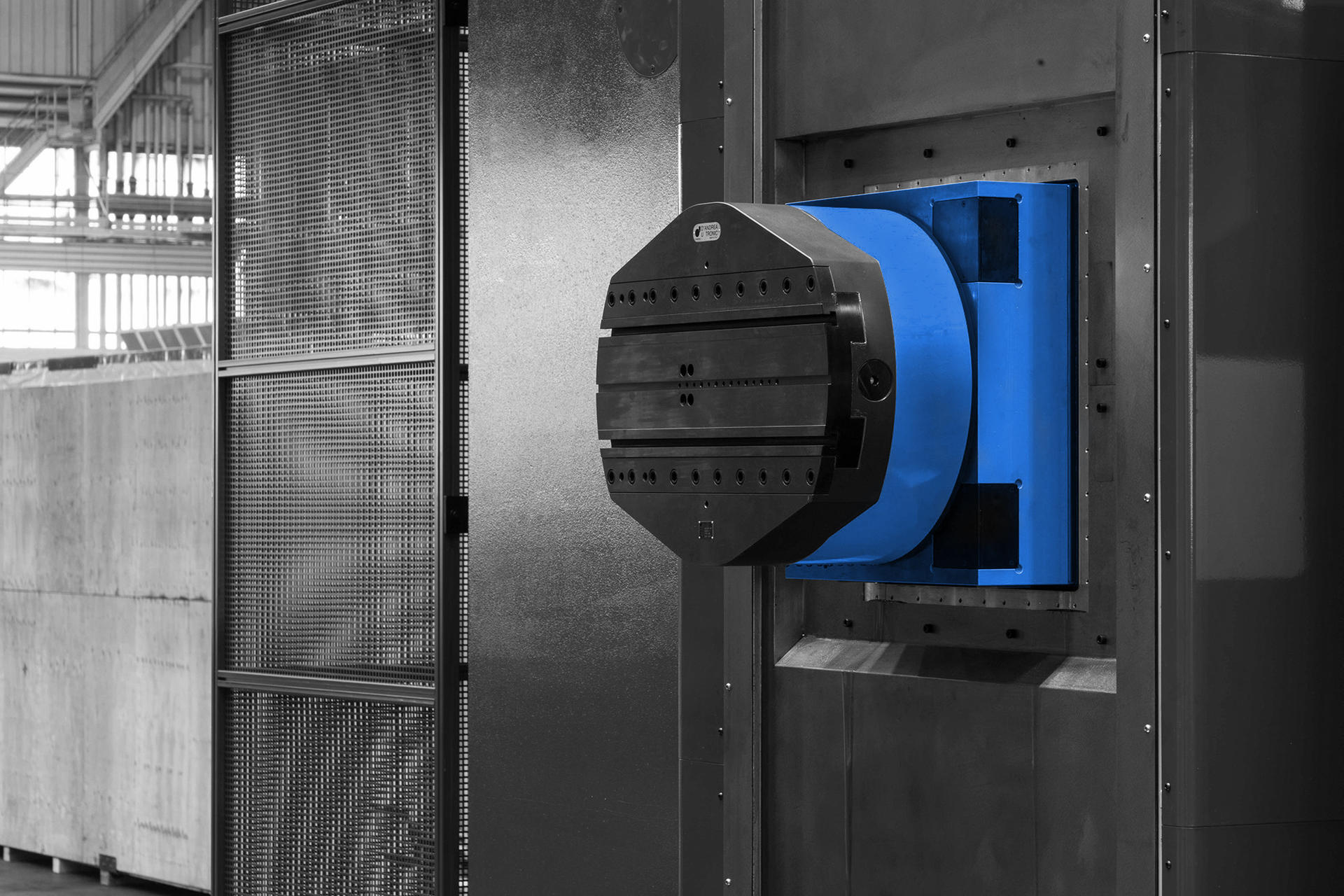

UT: Facing head
This attachment head provides an effective solution for facing and turning operations, including complex profiles. Through the CNC-controlled radial axis of the tool slide, different diameters can be achieved while keeping the machine spindle axis stationary:
- Available with manual or automatic tool change solutions
- Dedicated toolholder kits
- Option to increase machining torque through an integrated gearbox
- Wide range of diameters available
Tailored solutions for every production requirement
Our specialized technicians carefully analyze each customer’s production requirements to deliver tailor made solutions based on the specific workpieces and machining operations involved.
Every project is developed in close collaboration with the customer, with the goal of optimizing machine tool performance, increasing efficiency, and ensuring long-term reliability.
Among the available options, the following types can be supplied:
Every project is developed in close collaboration with the customer, with the goal of optimizing machine tool performance, increasing efficiency, and ensuring long-term reliability.
Among the available options, the following types can be supplied:
- Inclined Fixed-angle attachment heads
- Dual-spindle attachment heads
- Reverse attachment heads
- Speed multipliers
- Milling attachment heads with torque multipliers
- Boring spindle support units
Want more details about our solutions?
Request technical information, expert advice, or customized support — our specialized team is ready to assist you every step of the way.

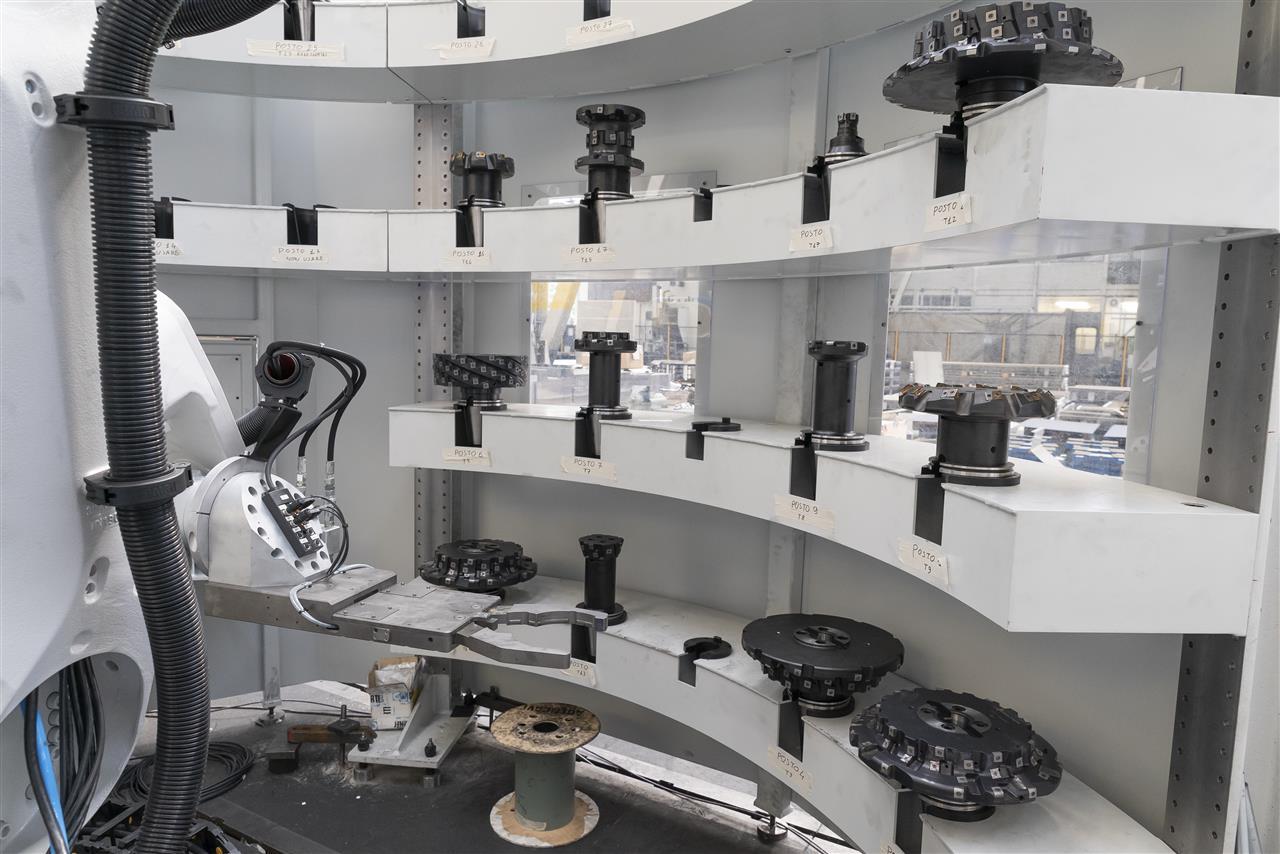

Tool Magazines and
Attachment head magazines
Tool Magazines and
Attachment head magazines
Explore all available configurations and find the perfect solution for your production needs.
