THE ATLAS HYDRO S SERIES

Portal milling machines for the railway sector

We design vertical milling machines specifically dedicated to machining railway and tramway components, such as rails, switches, and frogs made of highly alloyed materials.
These machines are developed to ensure maximum productivity and constant reliability, precisely meeting the needs of the sector.

Request more info

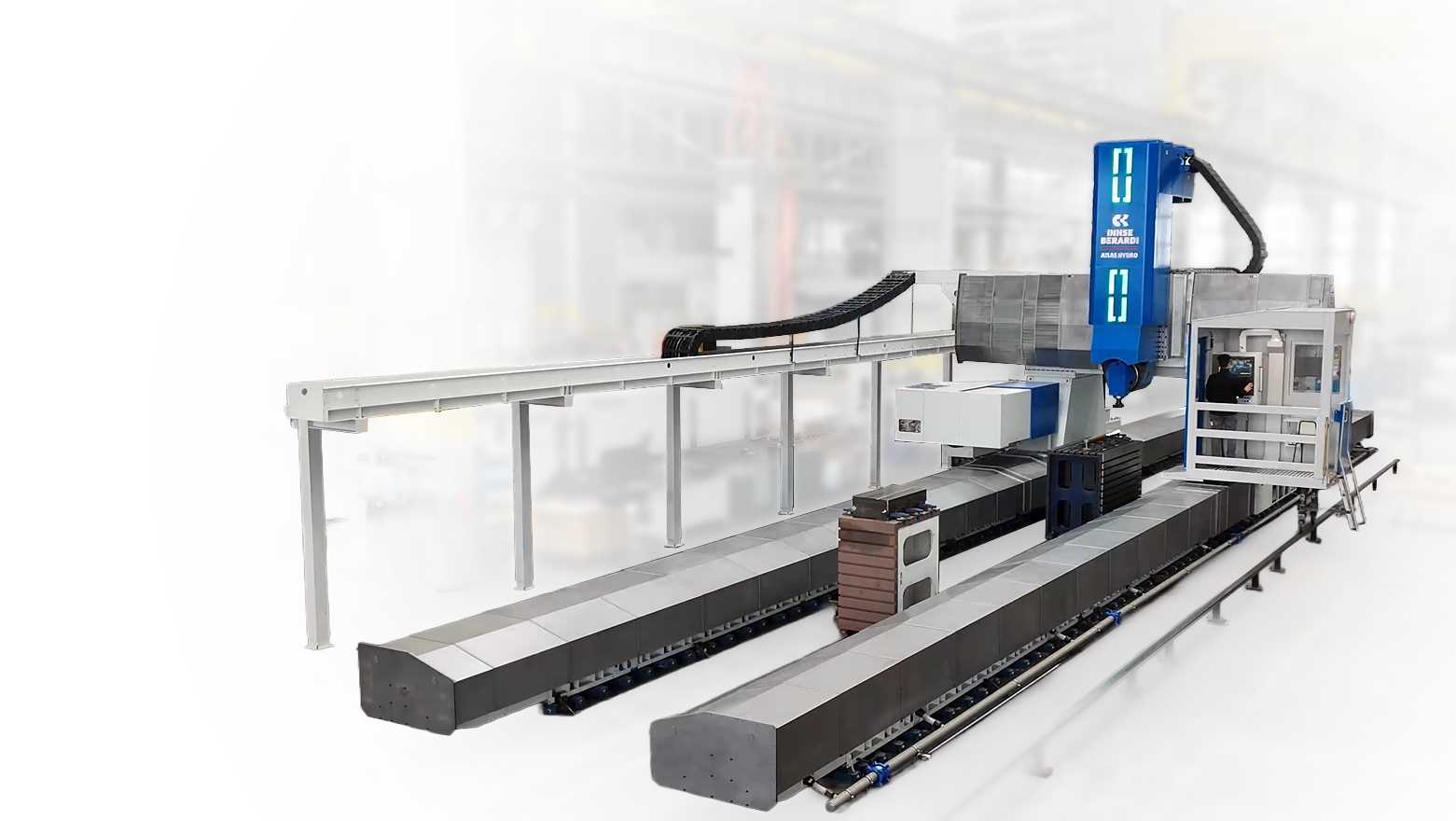

Atlas Hydro CNC gantry machine for railway manufacturing

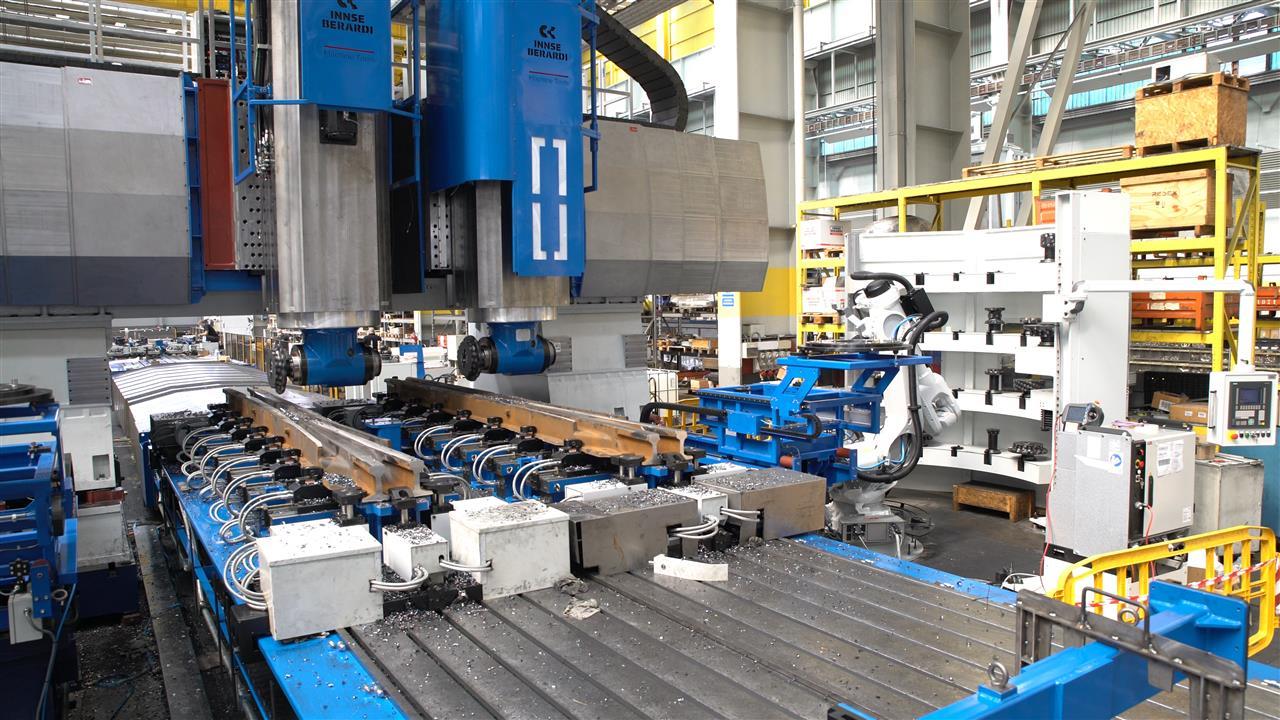

Angular machining with CNC head for complex industrial applications

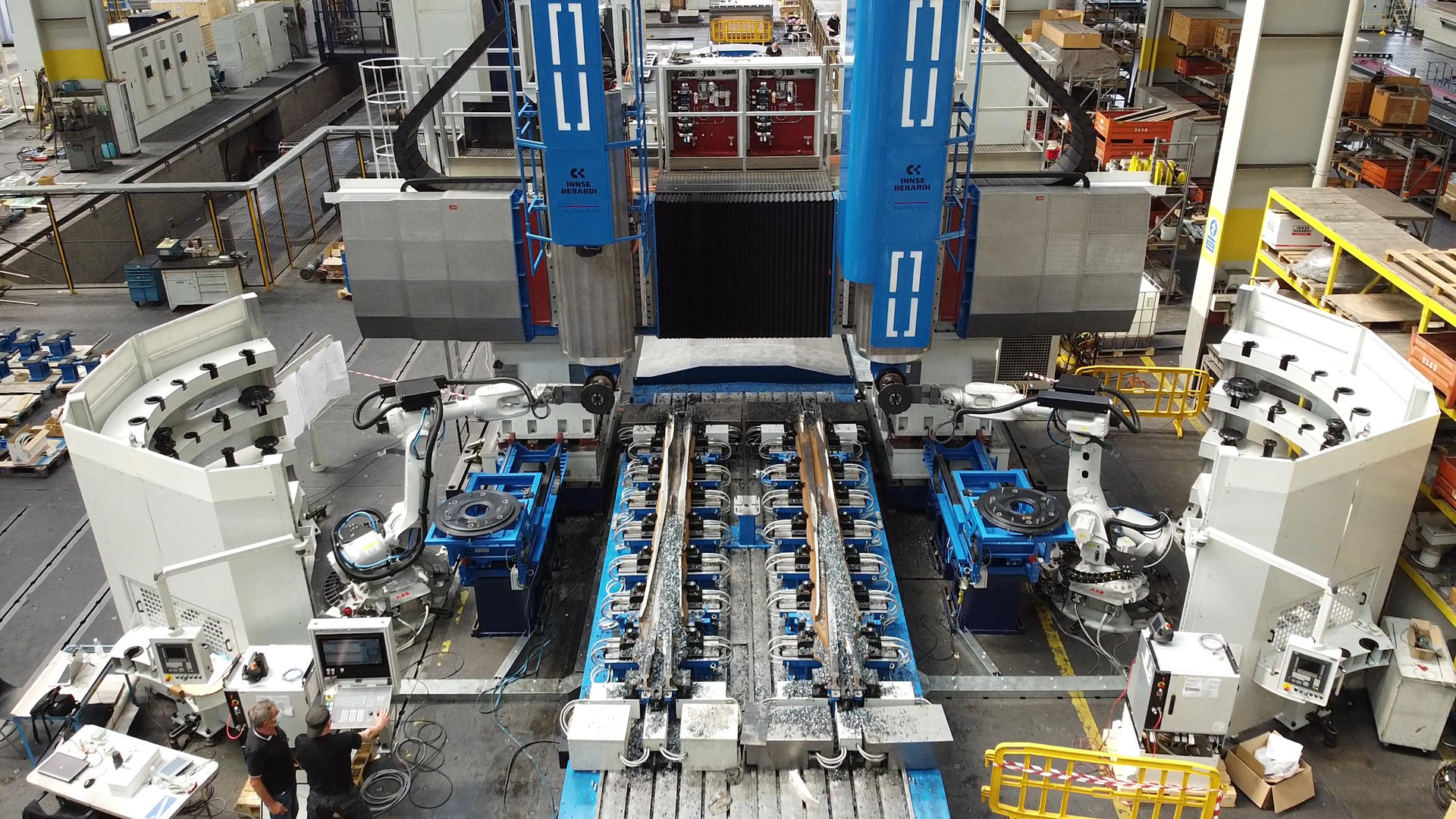

Atlas double-headed machine for high-precision railway machining

Key features of Atlas Hydro S

Hydrostatic X axis for the support of the portal or the working table

Available in double RAM configuration for simultaneous machining operations

The Y and Z axes with preloaded roller pads and anti-friction materials for maximum precision and effective vibration reduction

Dual working-zone or dual-table configuration enabling pendulum machining operations.

Dedicated Clamping systems with mechanical, hydromechanical, or magnetic devices

Optimal chip containment thanks to the option of full enclosure

Modular configuration

Based on our Flexible Design Concept (FDC), the Atlas Hydro S series offers modular configurations, adapting to different operational needs while keeping the core components of the machine unchanged. The available configurations include:

Fixed portal milling machine with moving table (P)

Atlas Hydro SP (Planomiller) consists of two fixed columns, anchored directly to the foundation with leveling and fastening jacks to ensure absolute stability. The single or double moving table configuration (X-axis) provides the longitudinal motion of the machine.

The high torque and power Ram head with integrated C-axis allows the use of different types of heads
Optimal configuration for machining manganese steel frogs
Can be equipped with robotic tool change systems for maximum automation
