Its versatile design meets a wide range of production requirements, with customizable X and Y axis travels and the option to integrate from 2 to 5 independent drilling units, operating both in the transverse and vertical directions.
Multi-spindle horizontal drilling machine
Power and Precision
for deep drilling

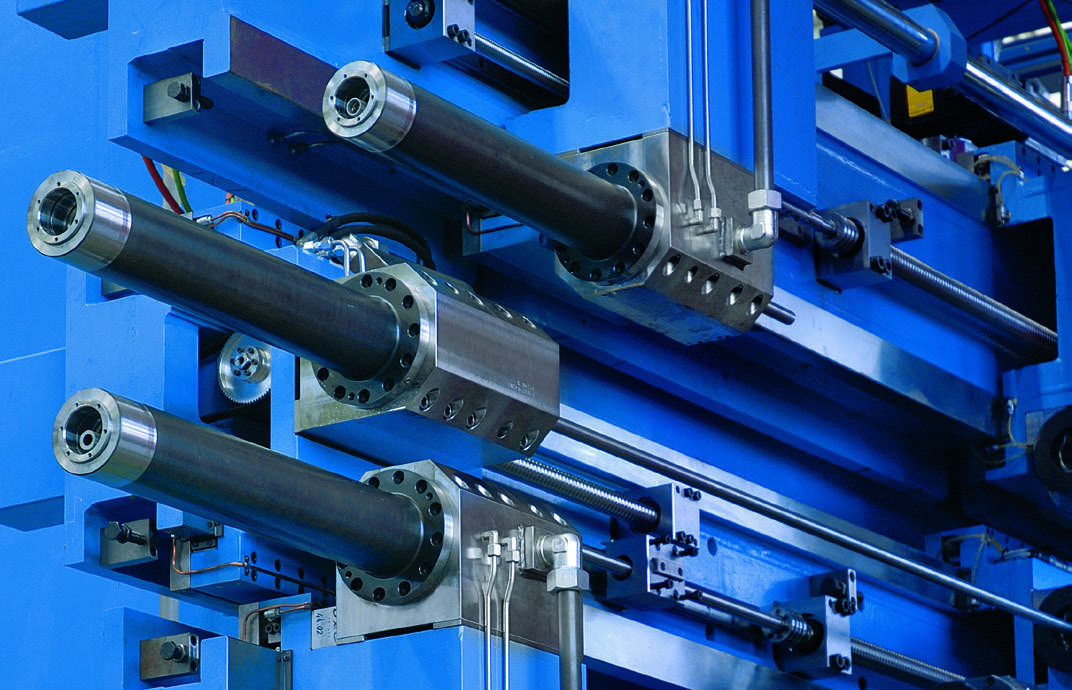

The FMM model is our high-performance multi-spindle drilling machine, specifically designed for deep hole drilling in tube sheets for heat exchangers up to 1000 mm thick .
Thanks to its dedicated configuration and ability to maintain precision and reliability even on large thicknesses, iit represents the ideal solution for the nuclear and petrochemical industries, where drilling quality is a critical technical requirement.
Thanks to its dedicated configuration and ability to maintain precision and reliability even on large thicknesses, iit represents the ideal solution for the nuclear and petrochemical industries, where drilling quality is a critical technical requirement.
Design & Features
Engineered to ensure continuous operations, the machine is designed with a modular configuration of drilling spindles, compatible with both BTA and gundrill technologies.Versatile configuration
Hydrostatic Guideways
The choice of hydrostatic guideways for the X-axis, combined with linear guideways and roller pads on the Y and Z axes, ensures high rigidity and effective vibration damping during machining operations, even with extended vertical travels.
Rigidity & Stability
The drilling machine is engineered to maintain advanced static, dynamic, and thermal rigidity, ensuring reliable performance throughout the entire machining cycle of workpieces that may include up to 14,000 holes. Its large working envelope allows drilling operations to be completed in a single setup.
Why choosing our FMM?
Configurations with 2, 3, or 5 drilling units featuring common or independent feeds with adjustable pitch via NC
Compatible with BTA, GUNDRILL, or both, for complex and versatile machining
Perfect linearity and drilling accuracy are achieved thanks to the new CNC-controlled vertical movement system of the carriages.
APPLICATION ENGINEERING AND ADVANCED CONTROL

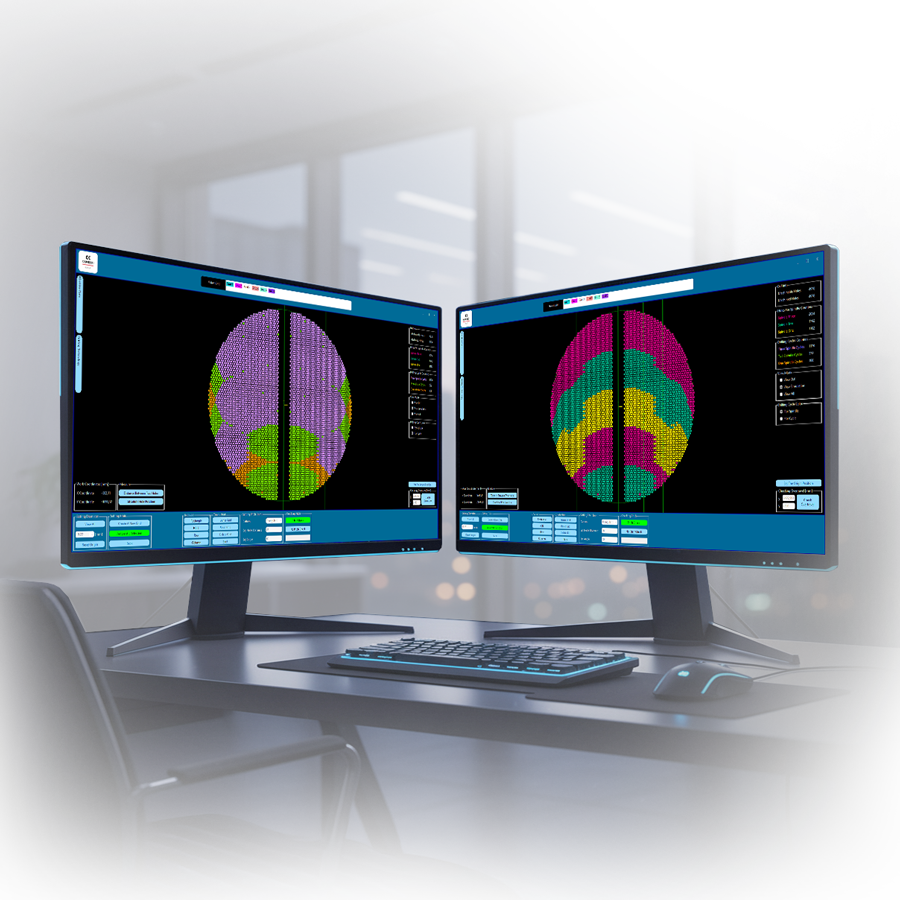

Terebro : Our software for FMM
A concrete example of our ability to integrate application know-how with software development is the program specifically designed for FMM (Multi-Spindle Drilling Machines). Developed with a user-friendly interface, this software provides operators with an advanced experience in programming and managing the drilling process in a fully automated and configurable manner.
