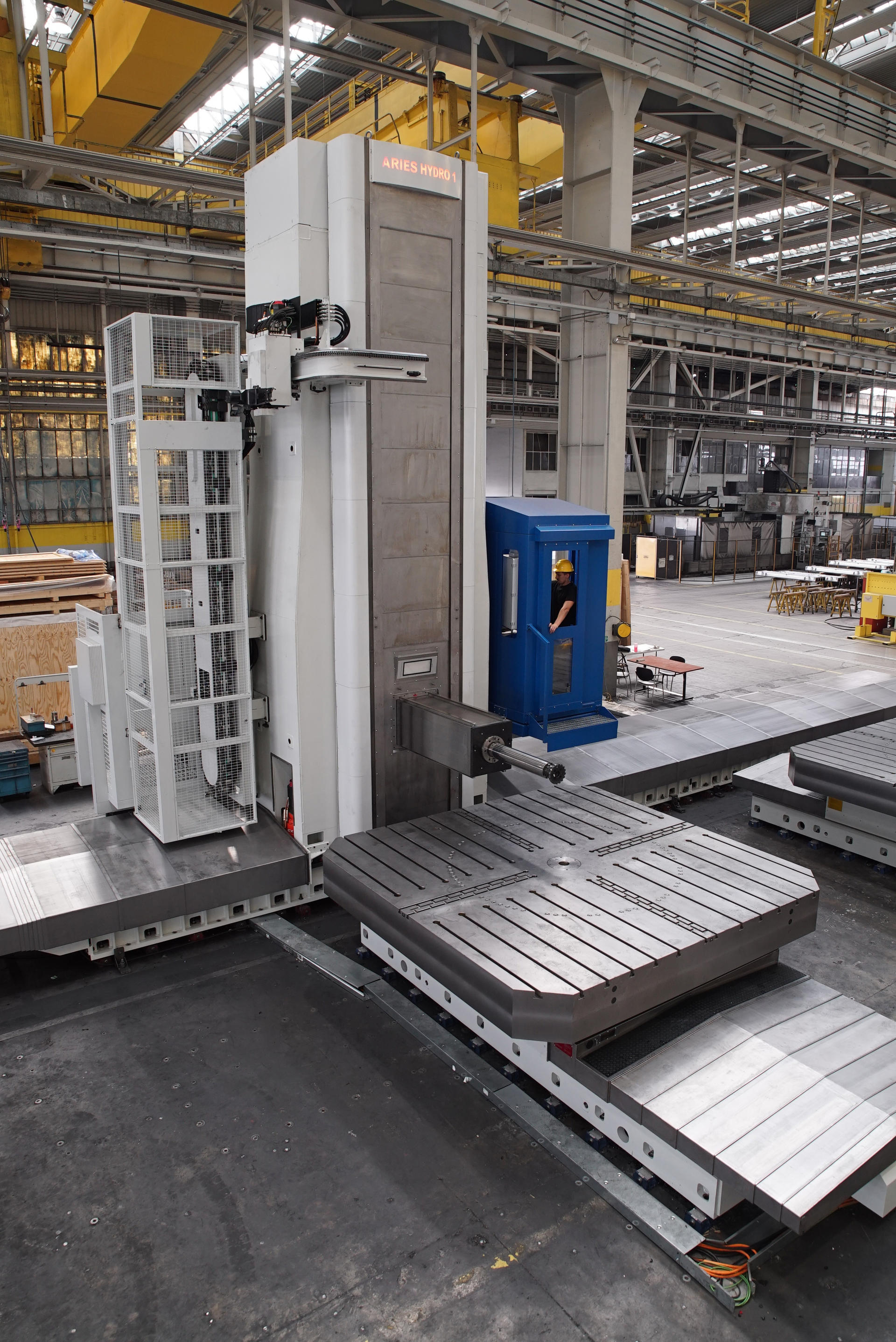

THE ARIES HYDRO SERIES
Horizontal spindle Boring and Milling Machines
The Aries Hydro series represents our line of milling-boring machines with moving column for medium and large-sized components, delivering the perfect combination of high performance, precision, and reliability. Its design with hydrostatic guideways ensures optimal structural rigidity and superior machining quality, making it ideal for complex and large-scale workpieces.
The key features of Aries Hydro
Easily handles large and heavy parts with high chip removal rate
Delivers excellent accuracy in all the working area
Offers multiple options with a wide range of standard and customized attachment heads
Allows two separate working and loading areas with the double table configuration
Modular configuration
Thanks to our innovative FDC (Flexible Design Concept) engineering technology, which makes it possible to develop modular solutions with different machine morphologies, various configurations can be offered while keeping the core components of the machine unchanged:
ARIES HYDRO 1
Design Box-in-Box
The innovative Box-in-Box design of Aries Hydro 1 ensures exceptional structural rigidity and high-precision performance. The centrally positioned Ram, combined with hydrostatic technology, optimizes mass distribution and provides outstanding thermal stability.
Key Advantages of the Box-in-Box Configuration:
Key Advantages of the Box-in-Box Configuration:
- Absolute precision across the entire working volume
- Balanced force distribution on structural components
- Compact design, ideal for space-constrained environments
| ARH1 | |
|---|---|
| Longitudinal X-axis travel | from 3000 mm up to 24500 + mm |
| Vertical Y-axis travel | from 2000 mm up to 6000 mm |
| RAM cross travel (Z-axis) | up to 2000 mm |
| Boring Spindle travel (W-axis) | up to 1000 mm |
| Boring Spindle Diameter | 130 - 150 - 160 mm |
| Spindle power | 50 - 65 kW |
| Torque | up to 3000 Nm |
| Spindle speed | up to 4000 rpm |
| X,Y,Z Axes feed | up to 25000 mm/min |
| W axes feed | up to 15000 mm/min |

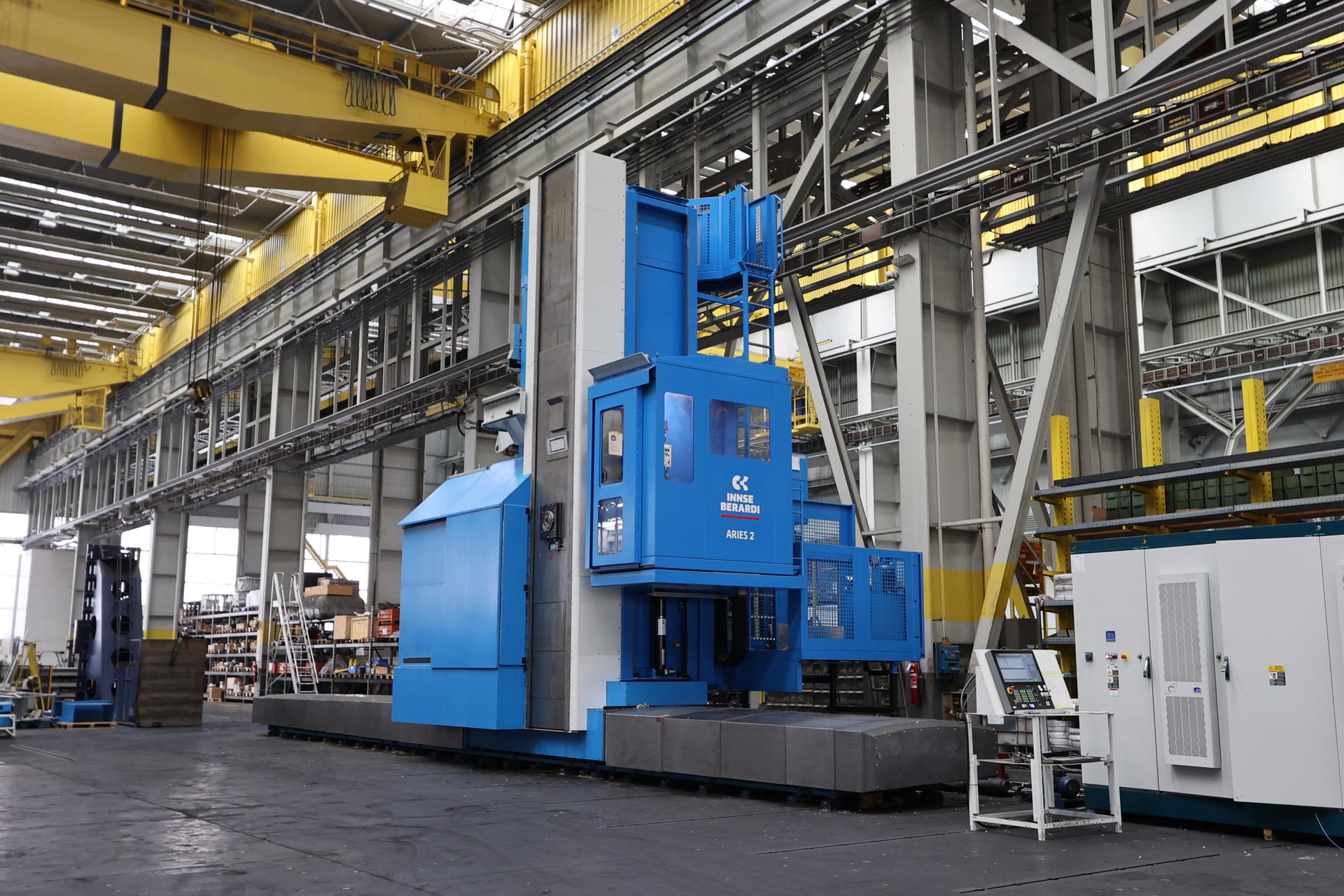

ARIES HYDRO 2-3-4-5
Side Ram Design
The Aries Hydro 2-3-4-5 series is engineered for optimal machining accuracy, thanks to a robust structural design and advanced technological solutions. Available in multiple size configurations, it adapts seamlessly to specific production requirements, making it a versatile and reliable choice for precision manufacturing.
| ARH 2-3-4-5 | |
|---|---|
| Longitudinal X-axis travel | from 5000 up to 30000+ mm |
| Vertical Y-axis travel | from 2500 up to 10000 mm |
| RAM cross travel (Z-axis) | from 1250 up to 2000 mm |
| Boring Spindle travel (W-axis) | from 1000 up to 1800 mm |
| Boring Spindle Diameter | from 150 up to 320 mm |
| Spindle power | from 50 up to 150 kW |
| Torque | from 3750 up to 32000 Nm |
| Spindle speed | from 1200up to3000 giri/min |
| X,Y,Z Axes feed | up to 25000 mm/min |
| W axes feed | up to 15000 mm/min |

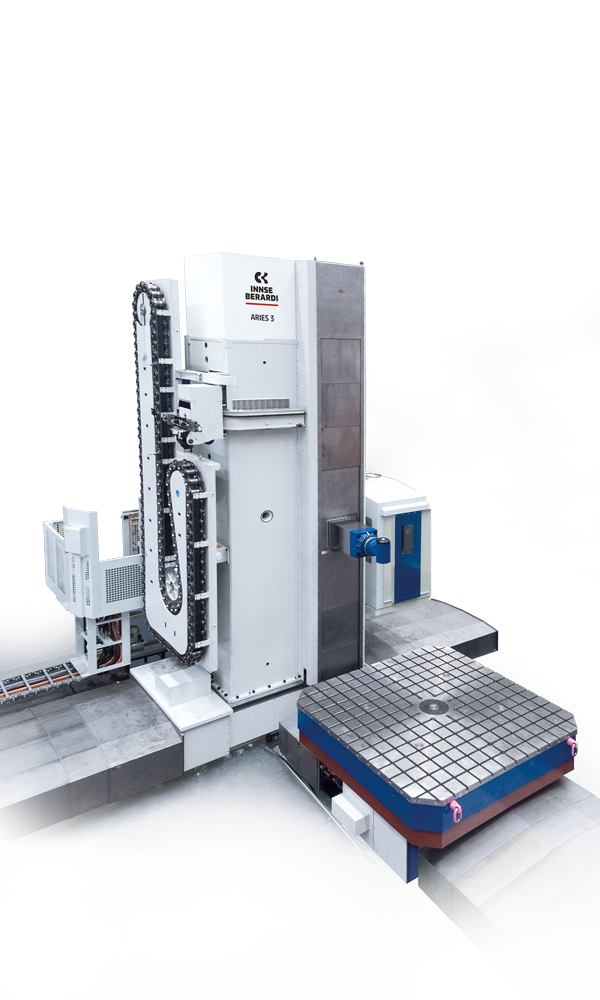

Discover all the technical details of the Aries Hydro series
