THE ARIES VISION SERIES
Milling and boring machines with linear guides
The Aries Vision series offers high-speed, high-performance movable column milling and boring centers, equipped with linear guideways. Designed for 3, 3+2 and 5-axis machining, these machines excel in processing complex components of all shapes and sizes.
Design Box-in-Box
The distinctive feature of Aries Vision is its exclusive box-in-box design, which ensures maximum structural stability and high precision.The centrally mounted ram head guarantees optimal mass distribution and thermal stability
The motion system is based on linear guides with preloaded crossed-roller carriages
Maximum accuracy across the entire working volume thanks to balanced force distribution
Compact footprint, ideal for environments with limited space

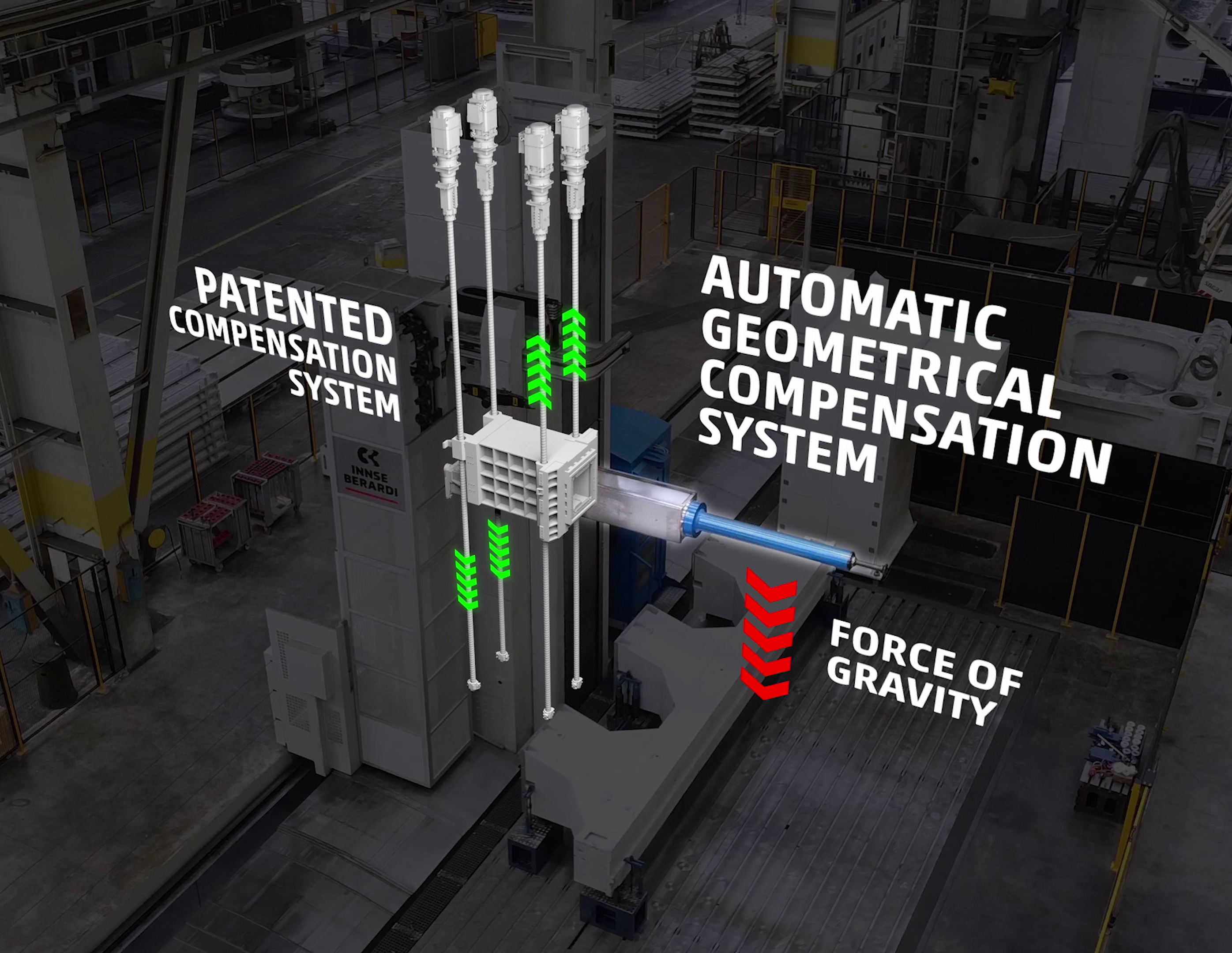

PATENTED TECHNOLOGY
Ram balancing and weight compensation system
The Aries Vision stands out thanks to the patented Ram balancing system with weight compensation, an innovative solution that guarantees constant performance, reduced maintenance, thanks to the absence of counterweight systems, and reliability over time.
Modular configuration
With our innovative Flexible Design Concept (FDC), developed by Innse Berardi, we are redefining the concept of design flexibility. Thanks to this cutting-edge modular technology, we can deliver customized solutions with different machine morphologies while keeping the strategic components unchanged:
MILLING MACHINE

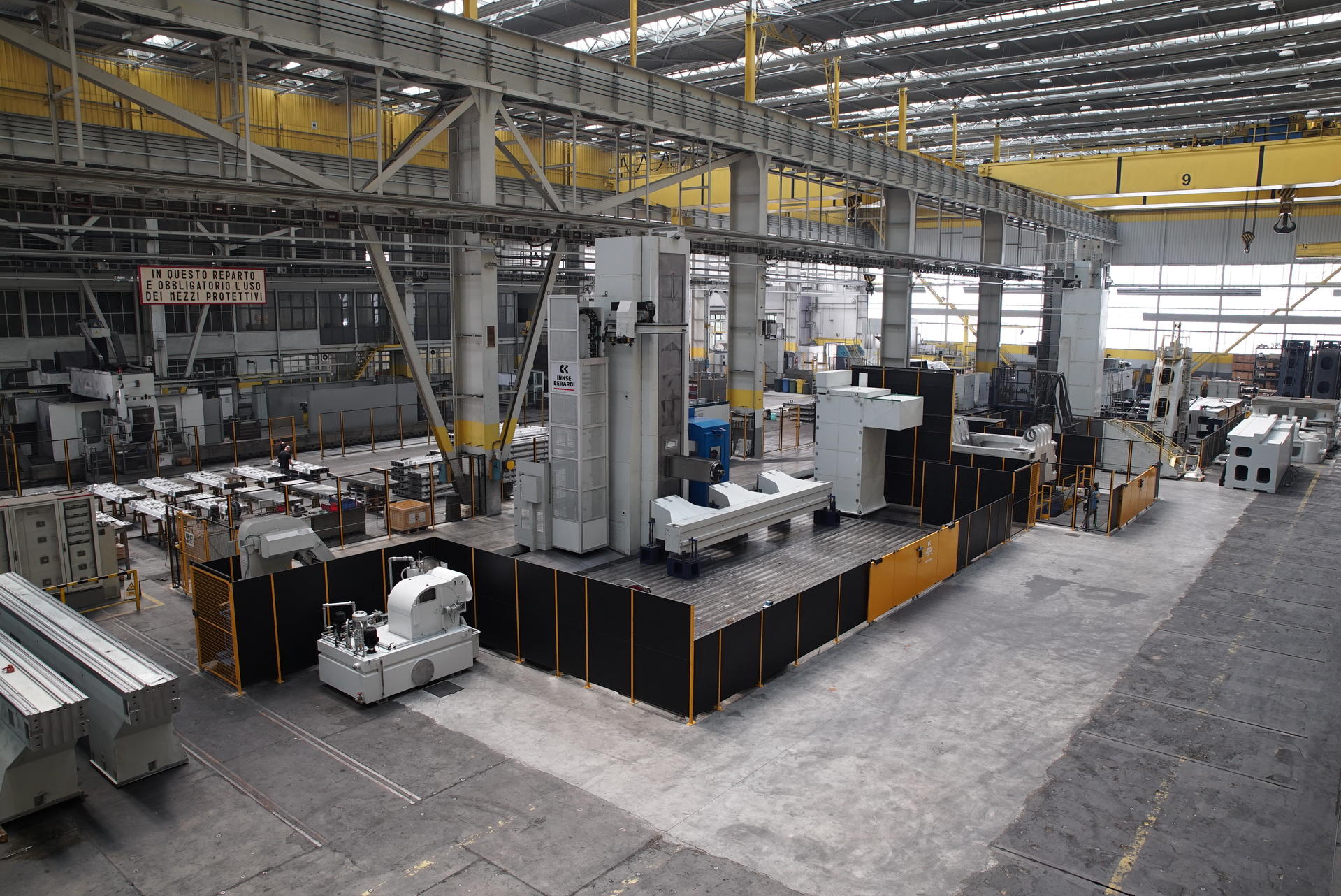

Aries Vision FR
Horizontal milling machines are designed primarily for milling operations and are distinguished by the integration of the C-axis within the ram. Thanks to their compact structure and the use of linear guideways with preloaded crossed-roller carriages, they deliver excellent stability and rigidity, making them ideal for both roughing and finishing operations on complex components.”
ARIES VISION FR | |
|---|---|
| Longitudinal X-axis travel | from 3000 up to 21000+ mm |
| Vertical Y-axis travel | from 2000 up to 6000 mm |
| RAM cross travel (Z-axis) | up to a 2000 mm |
| Spindle power | up to 60 kW |
| Torque | up to 2500 Nm |
| Spindle speed | up to 6000 rpm |
| X,Y,Z Axes feed | up to 30000 mm/min |
Discover the versatility of Hybrid Technology
Our Hybrid concept is born from the integration of mechanical and hydrostatic technologies, which is made possible by our in‑house expertise and the internal production of all key components. This unique capability allows us to deliver fully customized solutions engineered for high performance and long‑term reliability.
The hybrid configuration combines linear guides on the X and Y axes—ideal for ensuring high speed and dynamic motion—with a high‑rigidity hydrostatic ram designed to provide outstanding stability, consistent precision, and excellent vibration damping, even under the most demanding machining conditions.
The result? An optimized architecture that enhances performance and quality while reducing operating costs, elevating the machining experience to a higher level.
The hybrid configuration combines linear guides on the X and Y axes—ideal for ensuring high speed and dynamic motion—with a high‑rigidity hydrostatic ram designed to provide outstanding stability, consistent precision, and excellent vibration damping, even under the most demanding machining conditions.
The result? An optimized architecture that enhances performance and quality while reducing operating costs, elevating the machining experience to a higher level.
BORING MILLING MACHINE

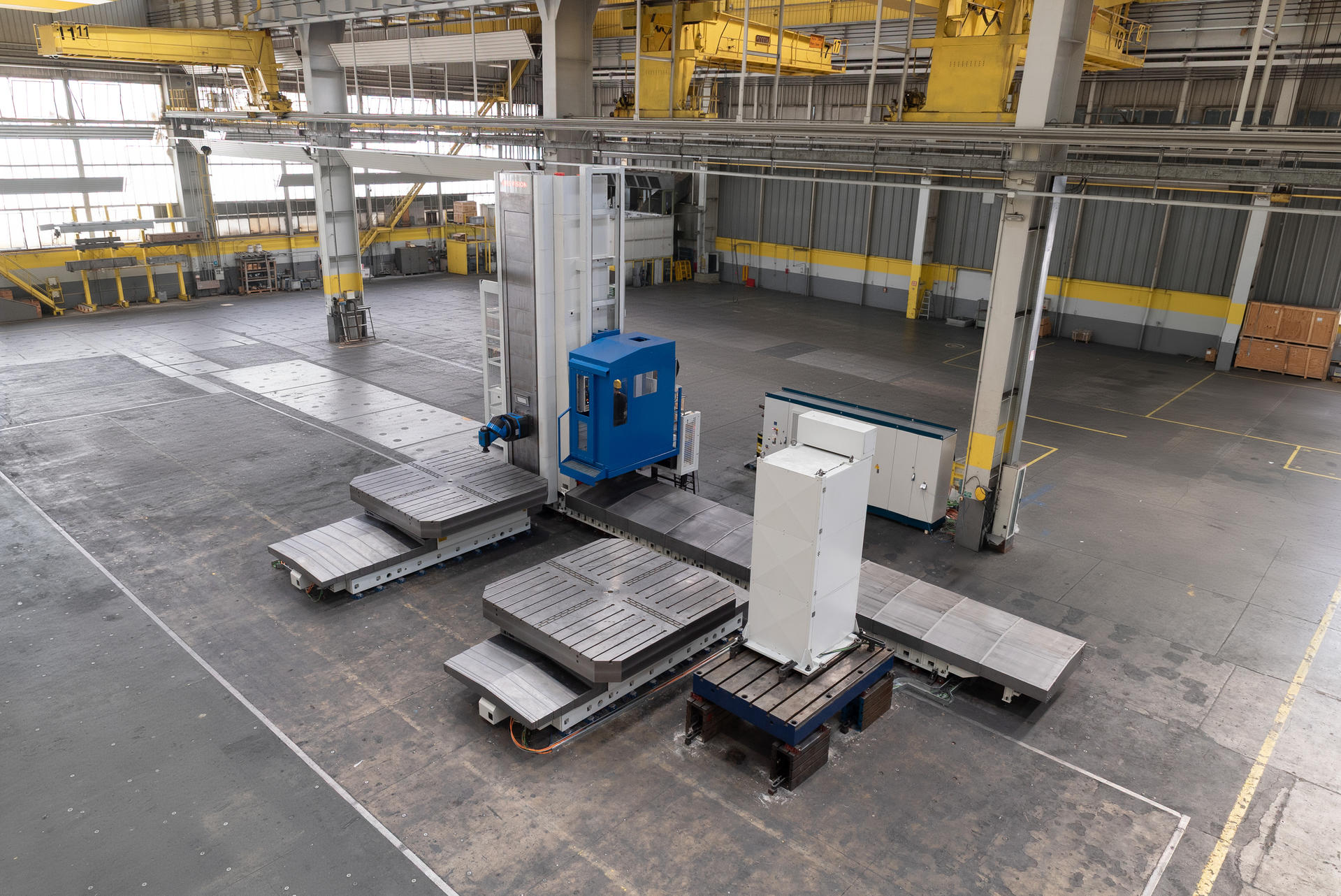

Aries Vision FRAL
Horizontal boring mills combine milling with high-precision boring capability, thanks to the integration of extendable spindles (boring bars) that allow access to deep cavities and large-diameter holes without repositioning the workpiece. This type of machine is ideal for heavy-duty machining of large components, typical in the energy, aerospace, and machine tool sectors, offering versatility and reduced machining times by enabling multiple operations in a single setup.
ARIES VISION FRAL | |
|---|---|
| Longitudinal X-axis travel | from 3000 up to 21000+ mm |
| Vertical Y-axis travel | from 2000 up to 6000 mm |
| RAM cross travel (Z-axis) | up to 2000 mm |
| Boring Spindle travel (W-axis) | up to 1000 mm |
| Boring Spindle Diameter | 130 - 150 - 160 mm |
| Spindle power | up to 60 kW |
| Torque | up to 2500 Nm |
| Spindle speed | up to 4000 rpm |
| X,Y,Z Axes feed | up to 30000 mm/min |
| W axes feed | up to 15000 mm/min |
Discover the versatility of Hybrid Technology
Our Hybrid concept is born from the integration of mechanical and hydrostatic technologies, which is made possible by our in‑house expertise and the internal production of all key components. This unique capability allows us to deliver fully customized solutions engineered for high performance and long‑term reliability.
The hybrid configuration combines linear guides on the X and Y axes—ideal for ensuring high speed and dynamic motion—with a high‑rigidity hydrostatic ram designed to provide outstanding stability, consistent precision, and excellent vibration damping, even under the most demanding machining conditions.
The result? An optimized architecture that enhances performance and quality while reducing operating costs, elevating the machining experience to a higher level.
The hybrid configuration combines linear guides on the X and Y axes—ideal for ensuring high speed and dynamic motion—with a high‑rigidity hydrostatic ram designed to provide outstanding stability, consistent precision, and excellent vibration damping, even under the most demanding machining conditions.
The result? An optimized architecture that enhances performance and quality while reducing operating costs, elevating the machining experience to a higher level.
Download Brochure
Discover all the technical details of the Aries Vision series
