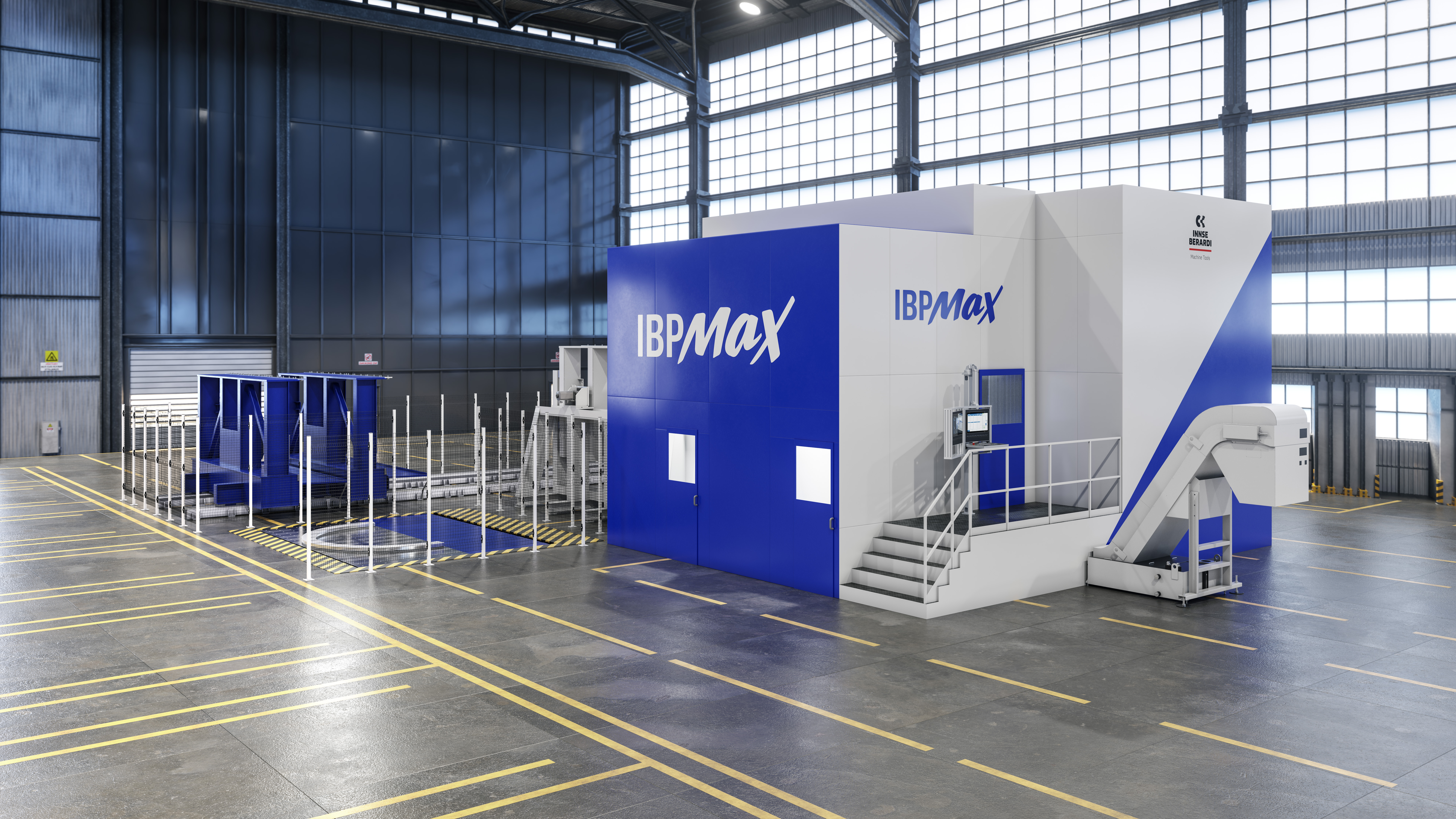

IBPMax S
Horizontal Machining Center Dedicated to Aluminum Processing
IBPMax S is the large-volume version of our horizontal machining center range, specifically designed for machining aluminum alloys. This model features a mobile column structure reinforced with a rear support that significantly increases rigidity.
Its advanced configuration ensures high dynamic stiffness, allowing the machine to achieve extremely high material removal rates while maintaining superior precision.
Its advanced configuration ensures high dynamic stiffness, allowing the machine to achieve extremely high material removal rates while maintaining superior precision.

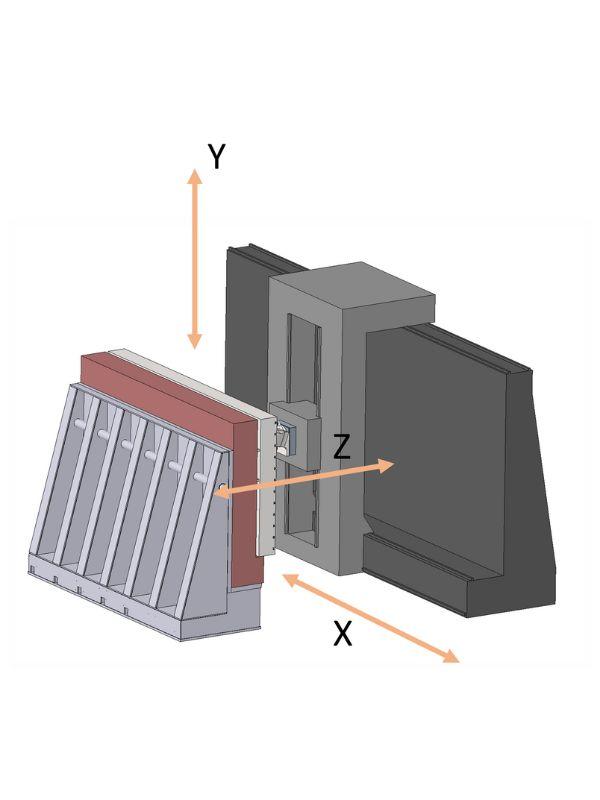

Patented Kinematic Configuration
IBPMax S, like the rest of the range, features the distinctive advanced patented X-axis configuration that delivers state-of-the-art performance in its class.
Specifically, the X-axis solution—guided at both the base and the top of the rear support structure—combined with a thermo-symmetrical Y-axis, ensures consistent material removal across the entire working volume.
Specifically, the X-axis solution—guided at both the base and the top of the rear support structure—combined with a thermo-symmetrical Y-axis, ensures consistent material removal across the entire working volume.
Functions and benefits
Advanced Kinematics Head with A-B axes + optional C axis
Z-axis with Box-in-Box configuration, ensuring thermal stability and zero ram deflection
Gantry-type X-axis for superior structural rigidity and improved response in high-speed milling
Optimized thermal stability for high machining accuracy
High-rigidity enclosed structure for optimal pallet support
Up to +40% productivity
| IBPMax S | |
|---|---|
| Longitudinal X-axis travel | from 4350 up to 7350 mm + ext up to 2350 mm |
| Vertical Y-axis travel | from 2200 up to 3750 mm |
| Z-axis travel | 750 mm |
| Spindle power | up to 150 kW |
| Spindle speed | up to 30000 rpm |
| X,Y,Z Axes feed | up to 70000 mm/min |
| X,Y,Z Axes Acceleration | up to 8 m/s² |

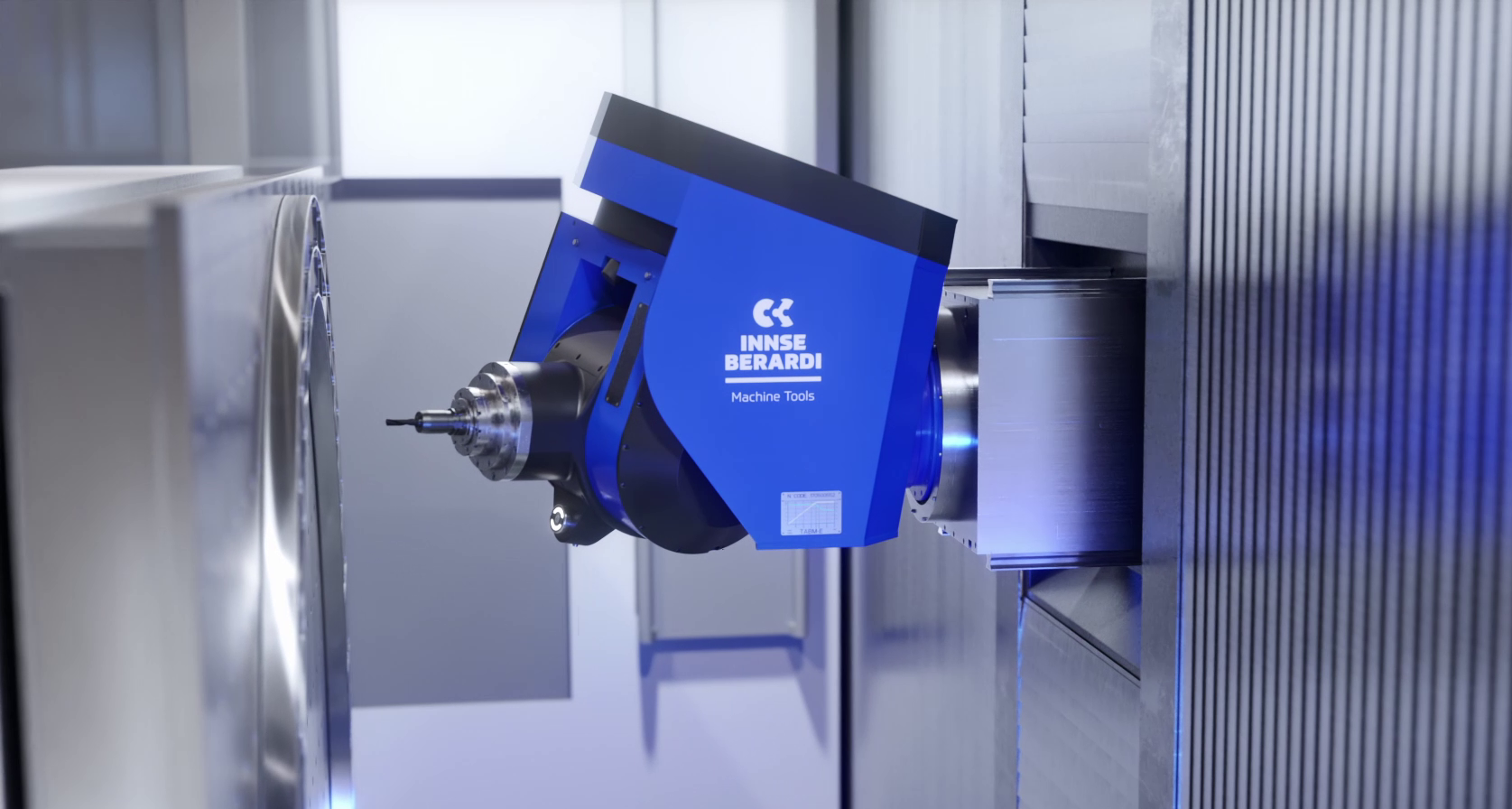

TAMB-E: Technology for Aluminum Machining
The IBPMax S series is equipped with the innovative TABM-E head, featuring a high-performance electrospindle designed to deliver maximum efficiency and optimal material removal. Specifically developed for aluminum machining, this head ensures excellent results even with complex geometries and demanding operations.
Thanks to its innovative design and the integration of advanced technologies, TABM-E redefines standards of reliability and performance in the industry. The result of years of research and development, this next-generation head significantly reduces machining time, optimizes productivity, and guarantees impeccable quality in every operation.
Thanks to its innovative design and the integration of advanced technologies, TABM-E redefines standards of reliability and performance in the industry. The result of years of research and development, this next-generation head significantly reduces machining time, optimizes productivity, and guarantees impeccable quality in every operation.
| TAMB-E HEAD
| SPINDLE | |||
|---|---|---|---|
| Torque (S1) | 66 Nm | ||
| Power (S1) | 125 kW | ||
| Max. speed | 30.000 rpm | ||
| Taper size | HSK-A-63 | ||
| AXIS | C [OPTIONAL] | B | A |
|---|---|---|---|
| Stroke | ±420° | ±50° | +50° / -130° |
| Max. speed | 720 °/s | 720 °/s | 720 °/s |
| Clamping torque | 4.000 Nm | 4.000 Nm | 4.000 Nm |
| Machining torque | 970 Nm | 970 Nm | 970 Nm |
