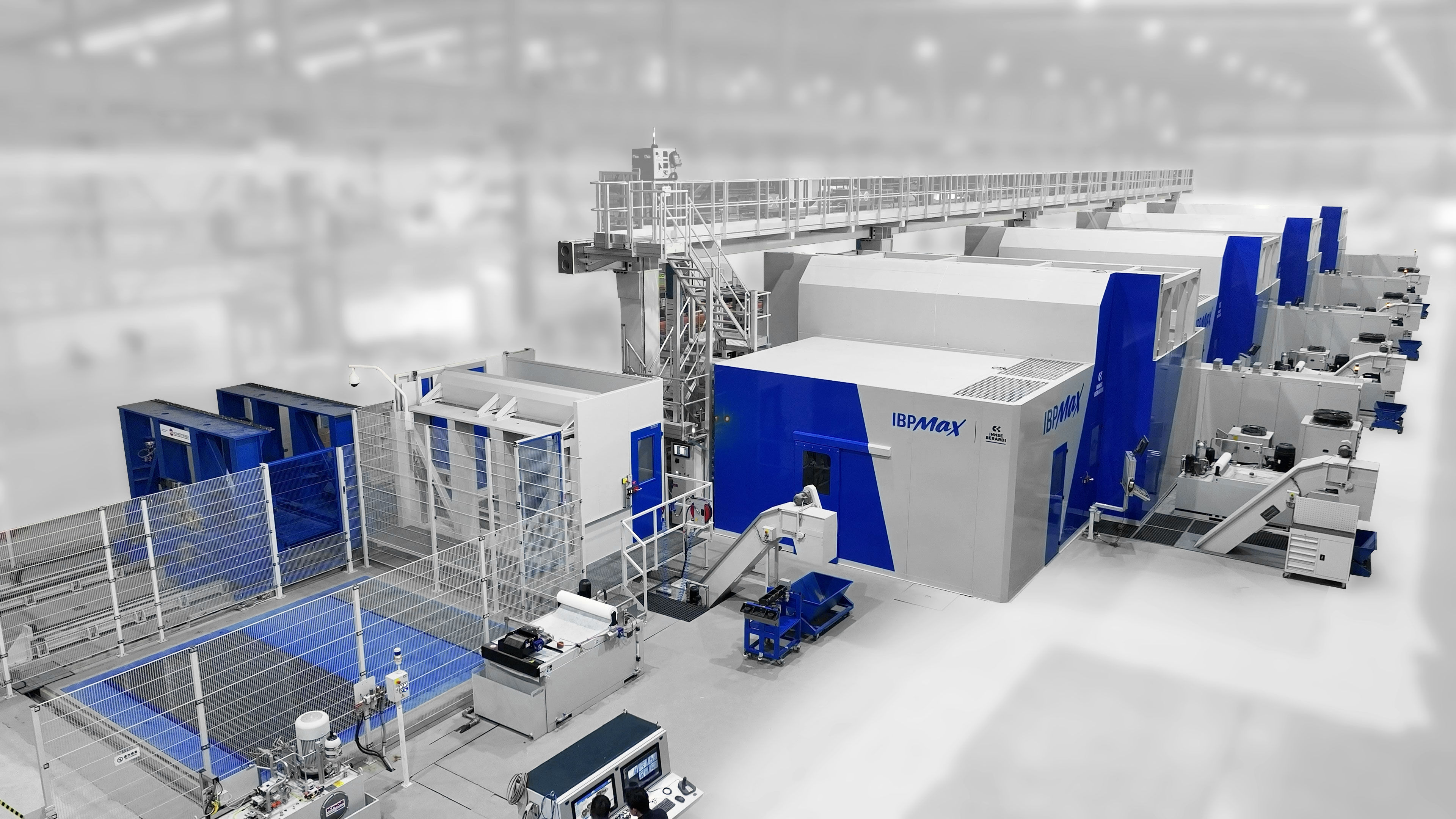

IBPMax T
Horizontal Machining Center for Titanium and Hard-to-Machine Materials
We designed IBPMax T to deliver high static and dynamic positioning accuracy at elevated speeds and accelerations, ensuring consistent material removal rates throughout the entire working area.

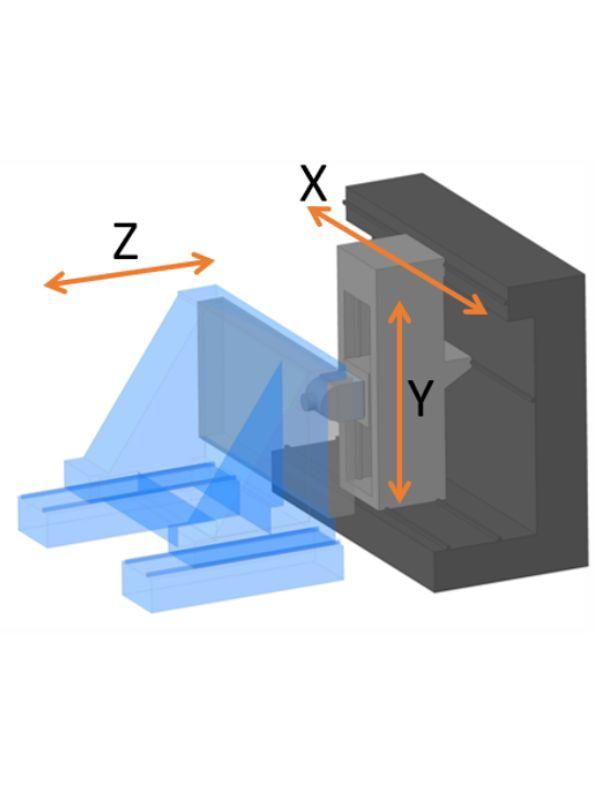

Patented Kinematic Configuration
The defining feature of IBPMax T is its patented X- and Y-axis configuration, which enables state-of-the-art performance in its class.
Specifically, the patented X-axis solution—guided at both the base and the top of the rear support structure—combined with an independent Z-axis and a thermo-symmetrical Y-axis, ensures consistent material removal across the entire working volume.
Functions and benefits
Multiple optical scales and dual geared motor sets with high torque and power
Thermo-symmetrical structure designed without a ram to minimize deflections on all axes
Hydrostatic guides on the Z-axis for optimal vibration damping
Optimized material removal volume, with reduced vibrations and minimal tool wear
IBPMax T | |
|---|---|
| Longitudinal X-axis travel | 4300-5300-6300 mm |
| Vertical Y-axis travel | 2200 mm -3000 mm |
| Z axis Travel ( horizontal profiler) | 1000 mm - 1500 mm |
| Z axis Travel (Rototraversing table) | 2000 mm - 3000 mm |
| X,Y,Z Axes feed | up to 30000 mm/min |
| X,Y,Z Axes Acceleration | up to 4 m/s² |

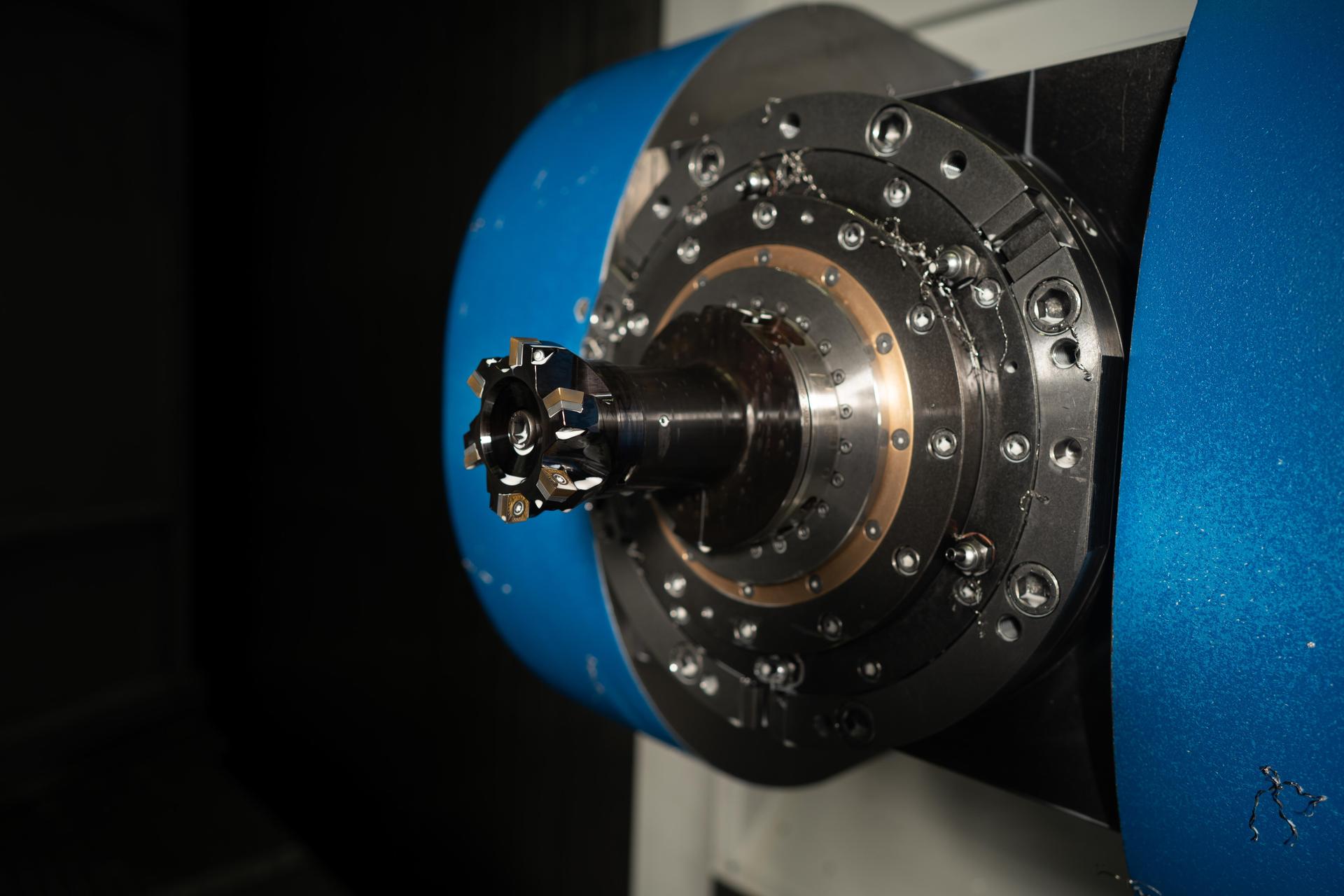

TE-400 Main Head
The distinctive features of the TE-400 head, equipped with a high-torque electrospindle, enable maximum material removal while maintaining stability and accuracy during the machining of hard-to-machine materials.
Its reliability and performance are the result of years of advanced research, development, and field-proven experience.
Its reliability and performance are the result of years of advanced research, development, and field-proven experience.
TE-400 Head | |
|---|---|
| Torque (S1) | 713 Nm-1000 Nm - 1400 Nm |
| Power (S1) | 86 Kw -120 kw |
| Max. speed | 8000 rpm- 6000 rpm - 4500 rpm |
| Taper Size | HSK-A-100 |
| C axis Machining torque | 9000 Nm - 17000 nm |
| A axis machining torque | 9001 Nm - 17000 nm |
